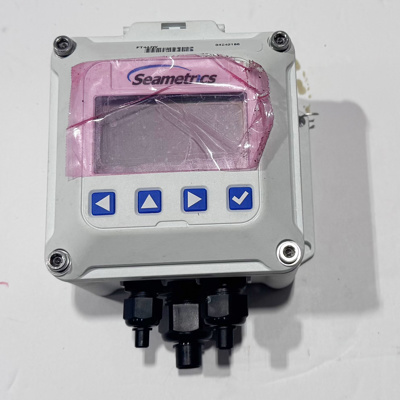

Seametrics® FT440W Loop-Powered Flow Monitor/Totalizer, Outputs: (2) Pulse & (1) 4-20 mA
Description
- Direct replacement for legacy FT415 and FT420 units
- Loop-powered FT440 features a 4-20 mA output
Use these microcontroller-based units to measure flow rate and total flow—view results on an easy-to-read LCD screen. Rugged NEMA 4X enclosure protects electronics from the elements.
FT440W loop-powered units are a direct replacement for the popular FT420 monitors/totalizers. They feature two user-scalable pulse outputs and one 4-20 mA output. Powered externally using the same loop as the 4-20 mA output.
An optional PC42 regulated dual power supply providing 12- and 24-VDC power is available separately (stock # 26475).
Note: Unit works with all Seametrics flow sensor signals (except battery-powered sensors).
Includes: wall-mount hardware. Optional mounting kit available (stock # 26471) for installing your monitor/totalizer directly on top of a Seametrics flow sensor.
- Sensor input: 5-VDC pulse frequency or contact closure, 2000 Hz (max)
- Outputs: two pulse, one analog
- Pulse range: 0.1 to 99,999.9 units/pulse
- Operating temperature: -32 to 131°F
- Enclosure: NEMA 4X, IP67 industrial-grade plastic, wall mount
- Dimensions (L x W x D): 4.3" x 4.7" x 3.37"
- Power: 9-30 VDC (loop powered w/ 4-20 mA output)
Product Information
- Item number
- 26473
- Brand Name
- Seametrics
- Catalog Page
- 406
- Net weight
- 2
- Condition
- New
